Product Code

G-DDW

Barcode (GTIN-13)

9421006253039

Overall Size

415mm (W) × 430mm (H)

📄

Download Install Manual (PDF)

📋

Download Catalogue (PDF)

⚠️ Glazier installation required: The G-DDW must be installed by a professional glazier. A 385mm diameter round hole is drilled through the glass using specialist equipment. Do not attempt DIY installation — incorrect cutting may crack or shatter the glass. Note that toughened or sealed double-glazed units cannot be cut after manufacture — a new panel with the hole pre-cut must be ordered. Contact us for referrals.

Dogwalk® Glass Fitting · Dual Glaze Medium Dog Door

G-DDW Glass Fitting Dog Door Dual Glaze White

The Dogwalk® G-DDW is a glass fitting dog door in white, manufactured from 100% UV-stabilised high-impact polycarbonate — same material as aircraft windows. Its dual glaze frame accommodates glass from 3mm to 32mm thick, making it suitable for both single and double glazing. The white frame suits white-framed aluminium windows, white sliding door frames and uPVC joinery. Specially developed for medium to semi-large dogs such as Beagles, Border Collies, Spaniels and Blue Heelers, up to a shoulder height of 450–500mm. The flap is designed to swing higher to reduce stress on the hinge and minimise broken flaps. For slim line single glazing, see the G-DDSLW. 3-year manufacturer's warranty*. Designed in New Zealand by Pet-Tek International since 1999.

Specifications

Glass Thickness

3mm – 32mm

Cut-Out Size

385mm dia (round)

Usable Opening (W × H)

270mm × 300mm

Flap Panel (W × H)

270mm × 313mm

Compatible Glass

Single & double glazing

Finish

White

Recommended For

Medium to semi-large dogs

Shoulder Height

Up to 450–500mm

Frame Projection

Inner Frame

12.06mm projection depth

Outer Frame

22.8mm projection depth

Key Features

White dual glaze frame — suits white aluminium and uPVC joinery
Suits single and double glazing up to 32mm thick
Large round 385mm cut-out — glazier drills a single hole
Flap swings higher to reduce stress on hinge — fewer broken flaps
No external screws — clean, seamless appearance
Full brush seals on all four sides — draught-free and weatherproof
4-way locking dial with additional security pin
100% UV-stabilised high-impact polycarbonate — same material as aircraft windows
3-year manufacturer's warranty*
Designed in New Zealand by Pet-Tek International since 1999

Enquire About This Product →

📏 Not sure this is the right size? Check the dog door sizing guide or learn how to measure your dog before ordering — the right fit matters more than breed.

Watch: How a Glass Fitting Dog Door Is Installed

Watch the install — then give your glazier this

Round cut-out size: 385mm diameter for the G-DDW
Your glass type & thickness: single or double glazing, 3–32mm
The fitting instructions from the box — glass range and clamping detail

Any qualified glazier can do this — most complete it in under an hour. Toughened or sealed units need a new panel with the hole pre-cut.

Frequently Asked Questions

What is the difference between G-DDW and G-DDSLW?

Both are white and share the same 385mm cut-out. The G-DDW is the dual glaze version with a deeper frame accommodating glass 3–32mm thick, suited to double-glazed units. The G-DDSLW is the slim line version suited to single glazing and sliding doors 4–20mm thick.

What glass thickness does the G-DDW suit?

The G-DDW suits glass from 3mm to 32mm thick, covering standard single glazing and most double-glazed units. For glass thicker than 32mm, please contact us to discuss options.

Can I install the G-DDW into existing double glazing?

Not directly — toughened or sealed double-glazed units cannot be cut after manufacture. A new glass panel with the 385mm hole pre-cut must be ordered and fitted by your glazier. This is standard practice and glaziers do it regularly.

What size dogs does the G-DDW suit?

The G-DDW is the Dogwalk® Medium dog door — specially developed for medium to semi-large dogs such as Beagles, Border Collies, Spaniels and Blue Heelers, up to a shoulder height of 450–500mm. The usable opening is 270mm wide × 300mm high (the flap panel is 313mm; about 13mm sits in the hinge). Before ordering, measure your dog standing: width at the widest point + 25mm must fit inside 270mm, and body depth (top of shoulders to bottom of chest) + 25mm inside 300mm. Fit the door with the bottom of the opening level with your dog’s belly. Labradors and Golden Retrievers sit at or above the top of the range — measure first or contact us. Use our Pet Door Selector for a personalised recommendation.

Is the G-DDW available in clear or black?

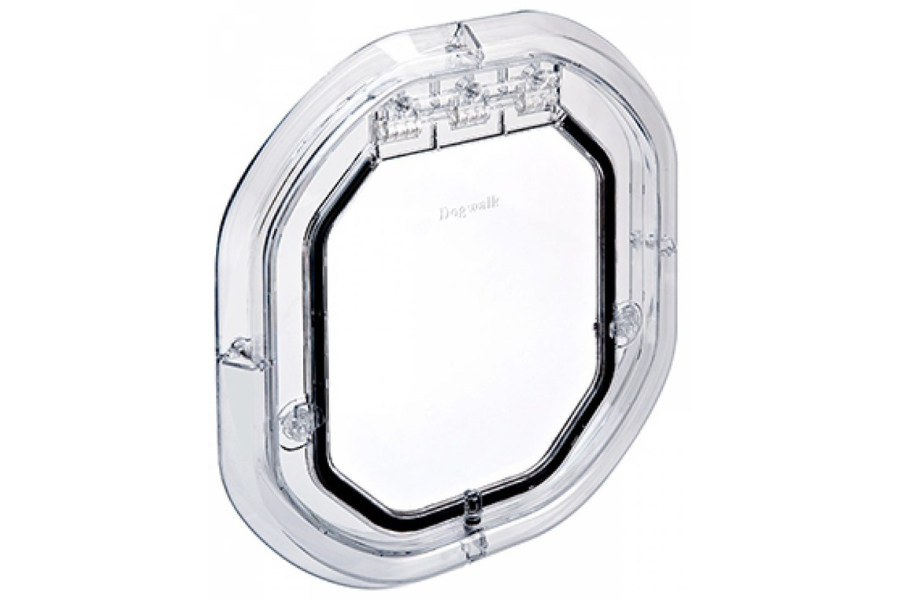

Yes — the G-DDC is the clear dual glaze version and the G-DDB is the black version — both with identical specifications.

How much does the G-DDW frame project on each side of the glass?

The G-DDW dual glaze frame projects 12.06mm on the inner face and 22.8mm on the outer face of the glass. The deeper outer projection accommodates the full thickness range of double-glazed units up to 32mm.

Retailers, Glaziers & Distributors

Stock the G-DDW. Pet-Tek International is a dog door manufacturer and wholesale pet door supplier since 1999 — supplying pet stores, hardware chains, garden centres and glaziers in 20+ countries. Trade pricing, export support, and local stock in Melbourne & Sydney for Australian trade buyers.

Become a Distributor →
